Caracteristicas

Especificaciones

Applicable Industries: Building Material Shops, Manufacturing Plant, Construction worksÂ , Energy & Mining, Pharmaceutical, Chemical, extraction and distillation, Medical

Showroom Location: United States, Pakistan, India, Russia, Thailand, South Korea, Malaysia, Australia

Video outgoing-inspection: Provided

Machinery Test Report: Provided

Marketing Type: Ordinary Product

Warranty of core components: 1 Year

Core Components: PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump

Condition: new

Type: Air-cooled or Water-cooled

Voltage: 380V 50HZ, support customization

Dimension(L*W*H): 75*75*175~120*110*205cm

Weight: 350 KG

Warranty: 1 Year

Power: 8.6~36KW

Working Temperature Range: -150 ~ -110â„ƒ (optional: -150 ~ -5â„ƒ)

Key Selling Points: High-accuracy

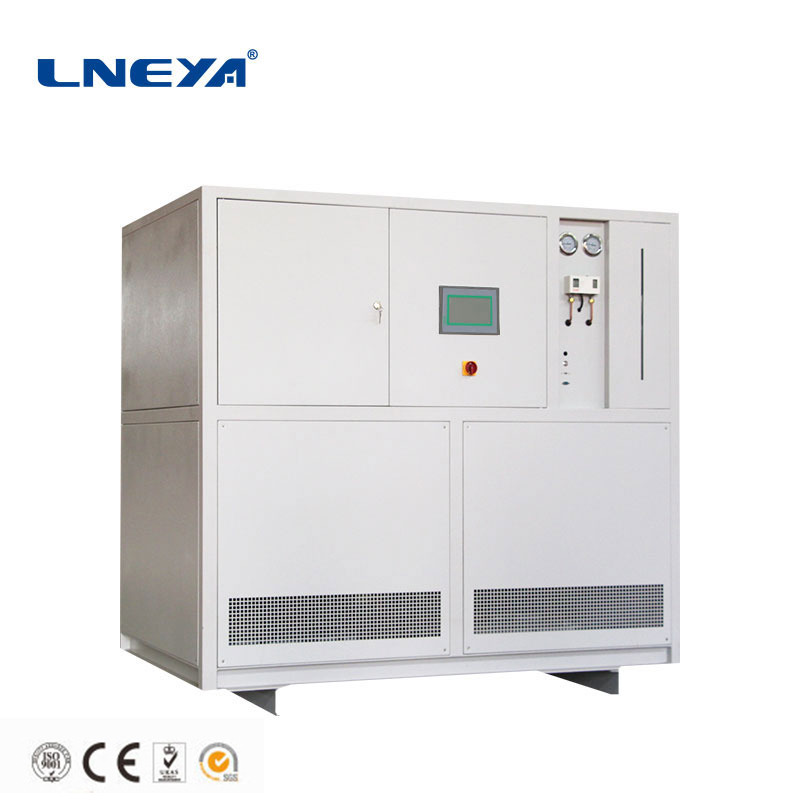

Product name: Industrial Cooling 12KW ~ 36KW Ultra Low Temperature Liquid Chiller

Temp. range: -150 ~ -110â„ƒ (optional: -150 ~ -5â„ƒ)

Cooling capacity: 1.4~11KW

Cooling Water AT 20â„ƒ: 2.5~10mÂ³/h

Evaporator area: 1.5~7.8m2

Refrigerant: R404A /R23/R14/R50 Mixed Refrigerant

Shell material: SUS304

Compressor: BOCK,Copeland,Hanbell,fusheng

Operation panel: 7 incH color touch screen

Expansion valve: emerson

Información básica

Pago y Envío Términos

Packaging Details: Standard wooden box packing

Supply Ability: 199 Set/Sets per Month

Descripción de producto

Products Description

1	alarm system
2	control panel
3	oil pressure difference protector
4	level gauge
5	frozen water import and export
6	cooling water inlet and outlet

Features and advantages of industrial chiller

1.Temperature ranges from -5℃ ~ -150℃, can meet different temperature

2. Famous brand semi-closed piston compressor, semi-closed bipolar piston compressor, semi-hermetic screw compressor, main brand are BOCK. Bitzer, Copeland, Handbell, fusheng; Plate heat exchanger, Small volume, High efficiency

3. Top imported cold controller; Generator cooling water circuit uses intermediate heat exchanger, improve system reliability and safety

4. DANFOSS electronic expansion valve, high precision control
5. Adopt Siemens PLC S7-200/300, LNEYA touch screen, automatic control, temperature curve display, temperature record U disk, fault alarm
6. Offer machine installation and system test, users only need to finish the installation of refrigerant and cooling water

Compressor:

Adopt the world famous brand compressor, enhance the cooling effect and reduce the energy consumption.

Touch Screen:

Siemens 7-inch color touch screen, digital curve display, support data export.

Electric Cabinet:

Compact design, strong structural versatility, adopt standard module design, high technical performance.

Customized products

We support customization services, pls click to consult us for details.

Product Paramenters

Model			SLJ-2(W)	SLJ-4(W)	SLJ-4(W)	SLJ-6(W)	SLJ-11(W)
Temp range			-110℃～-150℃
Cooling capacity (KW) AT	-120℃	2kW	3kW	4kW	6kW	11kW
Cooling capacity (KW) AT		-135℃	1.4kW	2.1kW	2.8kW	4.2kW	7.7kW
Evaporator area			1.5m2	2m2	2.8m2	4m2	7.8m2
Refrigerant			R404A /R23/R14/R50 Mixed Refrigerant
Cooling Water AT 20℃			2.5m³/h	3m³/h	4m³/h	6m³/h	10m³/h
Dimension cm			70100175	7575175	7575175	10095205	120110205
Power 380V 50HZ			8.6kW	12kW	16kW	24kW	36kW
Weight （kg）			320kg	350kg	400kg	600kg	950kg

Company Profile

Wuxi Guanya Refrigeration Technology Co., Ltd. specialized in the industrial chiller, environmental chamber, industrial freezer, thermostatic bath, multi-reactor chiller (TCU), recirculating air control system and ultra-low temp. water-cooled chiller.We are the technology leader for high precision thermoregulation solutions in research and development industry. Our products ensureprecise temperature control throughout the whole world in the semiconductor industry, chemical/pharmaceutical industry, biotechnology industry, research/lab/university, food/medical/hospital(health)and laptop/Mobile Phone. Our products offer temperature control solutions for applications from -152 to +350℃.

Product packaging

Certifications

So far, LNEYA has 11 patents of utility model authorized certificate.

As an enterprise certified by ISO9001, LNEYA has reached international standards in the integration of various management systems. The products of LNEYA, CE is used as a permit for the product to enter the European market.

Exhibition

LNEYA attends various exhibitions at home and abroad every year. At the exhibition, we show the latest research equipment of LNEYA. Every year, long-term cooperative customers will come to exhibitions and communicate with us. We are also actively developing new customers to provide them with high quality machines and services.

FAQ

After sale service
Quality assurance
Guarantee that the goods are sold to be conform to the provisions of the contract and qualified new products by factory
inspection, quality performance, technical indicators and configured are in accordance with manufactures and technical documents stipulated in the contract.

Installation and debugging
After the arrival of the goods, my company or my company agent is responsible for installation and debugging of equipment need on-site installation and debugging.

Inspection and acceptance
After installation and debugging, acceptance by the customer to confirm the goods to be conform to the provisions of the contract and qualified new products, quality performance, technical indicators and configured are in accordance with manufactures and technical documents stipulated in the contract, and after the confirmation of a full set of technical documents, sign the installation acceptance report and confirm acceptance.

Training
At the same time of installation and debugging of equipment, my company’s after-sales service engineer is responsible for
technical training for user until user can be skilled of operation. In the process of using equipment by customer, customer can consult relevant technical issues to after-sales service personal of our company at any time, according to the situation, my company will arrange training on site or remote.

After sale service commitment
A full free one year warranty since the date of acceptance, during the warranty period, all repairs and spare parts are free of charge(instrukent malfunction caused bu human factors will be charged of cost price of spare parts); After the warranty period, we will be responsible for maintenance of equipment for lifetime, according to the actual maintenance fees, appropriate fee will be charged.
(PS:There will have extra charge if the customer need on-site service. And customers need to describe the issue first and then send some failed pics or videos in advance, then Lneya judge if it is possible to go for after-Sales on site. )
